How to create a clean water alley, Part 3

Posted on by nancysteele

Now that the infiltration trench and bio-swale have been constructed, it is time to lay the sidewalk, which goes on top of the infiltration trench. How’s that, you say? Putting a sidewalk on top of the place where water is supposed to soak in? For the Paseo, we installed pervious concrete but even if we had used regular cement, it still would have worked as the system is designed to receive water from the bio-swale underground.

The Pervious Concrete Pathway winds its way from one end of the Paseo to the other, providing a pleasant and safe path. Pervious concrete has ‘voids’ or gaps that are created when the fines are removed from mix thereby allowing water to flow through the concrete. Water falling on or over the pervious concrete will flows through these spaces to the infiltration trench below it. To begin construction of the Pervious Concrete Pathway, a course of gravel was spread out over the infiltration trench and areas of the exposed impervious liner.

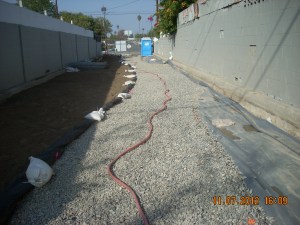

DSCN2844

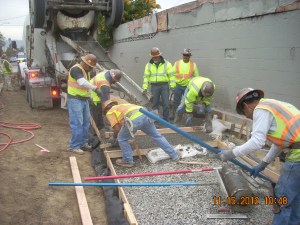

Unlike Portland cement concrete, pervious concrete sets up quickly. Many hands were needed to pour, spread, smooth, and score the concrete. The choreography of material and work was impressive that day and kudos to Rudy and his crew at J&M Contractors for a pathway many will enjoy.

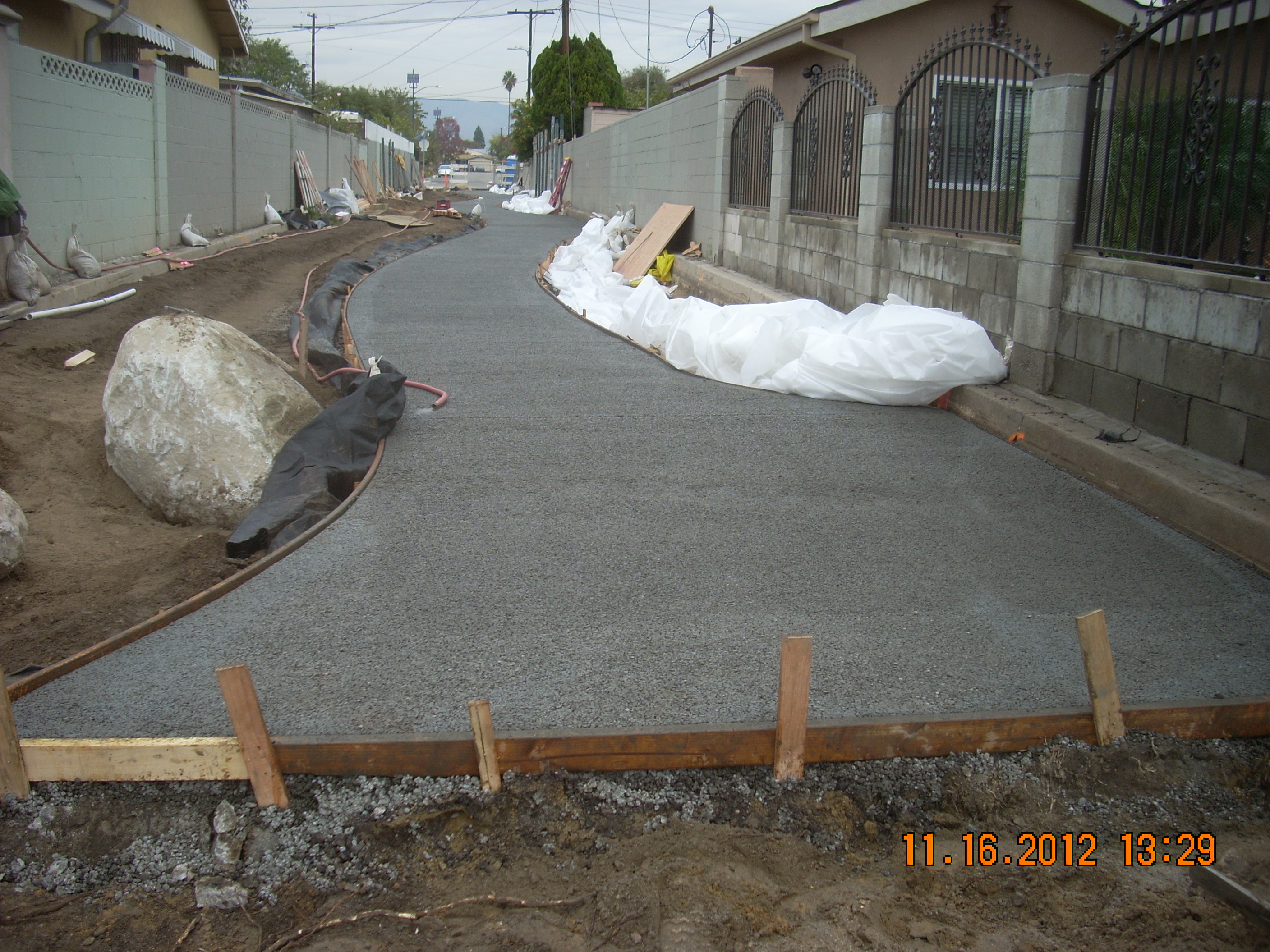

To aide in the curing process and protect from errant soil or debris, the completed pathway was covered with plastic sheeting. Below you see the completed pervious pathway along with one of the landscape boulders.

Next up is construction of the Forebay, an important element of the design to protect the bio-swale from erosion and clogged soil.

To be continued

How to create a clean water alley, Part 2

Posted on by nancysteele

In Part 1, we showed the initial steps in constructing the infiltration and bio-swale. Part 2 illustrates the complex choreography of marrying the infiltration trench and the bio-swale.

The majority of water entering the Paseo will be directed to the bio-swale, which will filter and allow water to infiltrate the soil and migrate to the infiltration trench.  To maintain the function of the infiltration trench, we need to prevent soil from the bio-swale from filling in the voids and gaps. A geotextile – a tightly woven material – both helps prevent soil from moving into the infiltration trench and allow water to move into the trench.

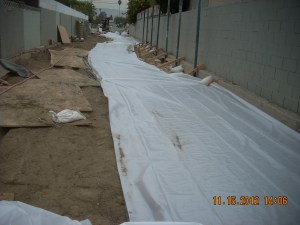

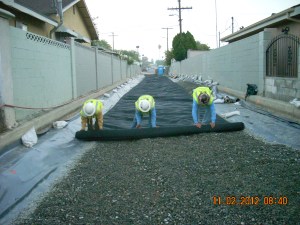

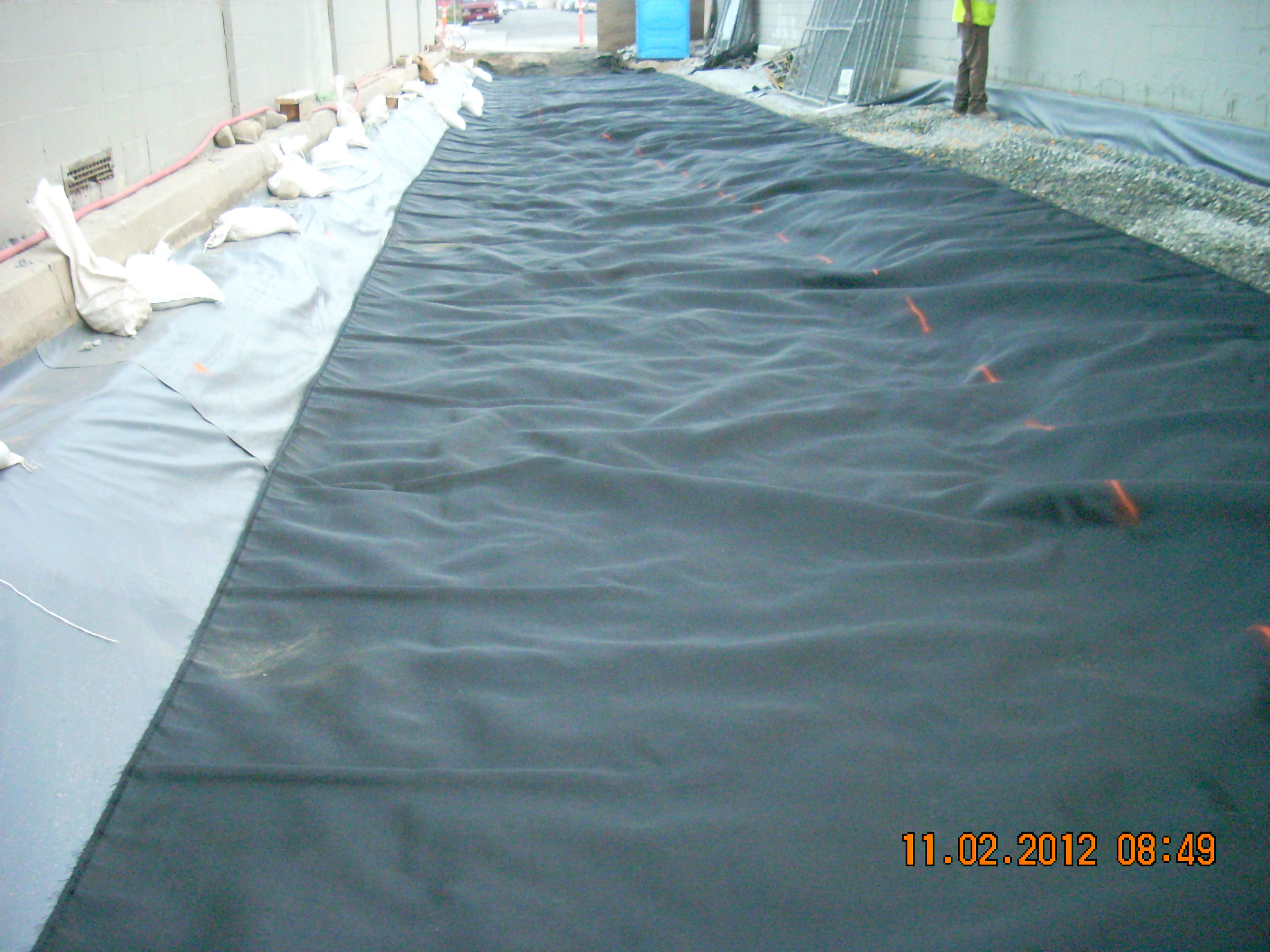

The crew placed a layer of geotextile on top of the base layer of gravel and marked it to indicate where the edges of the infiltration trench and the bio-swale met.  One side will have soil and the other will have gravel.

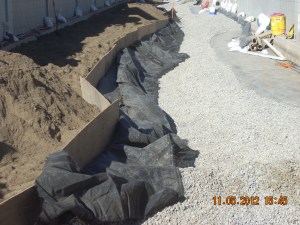

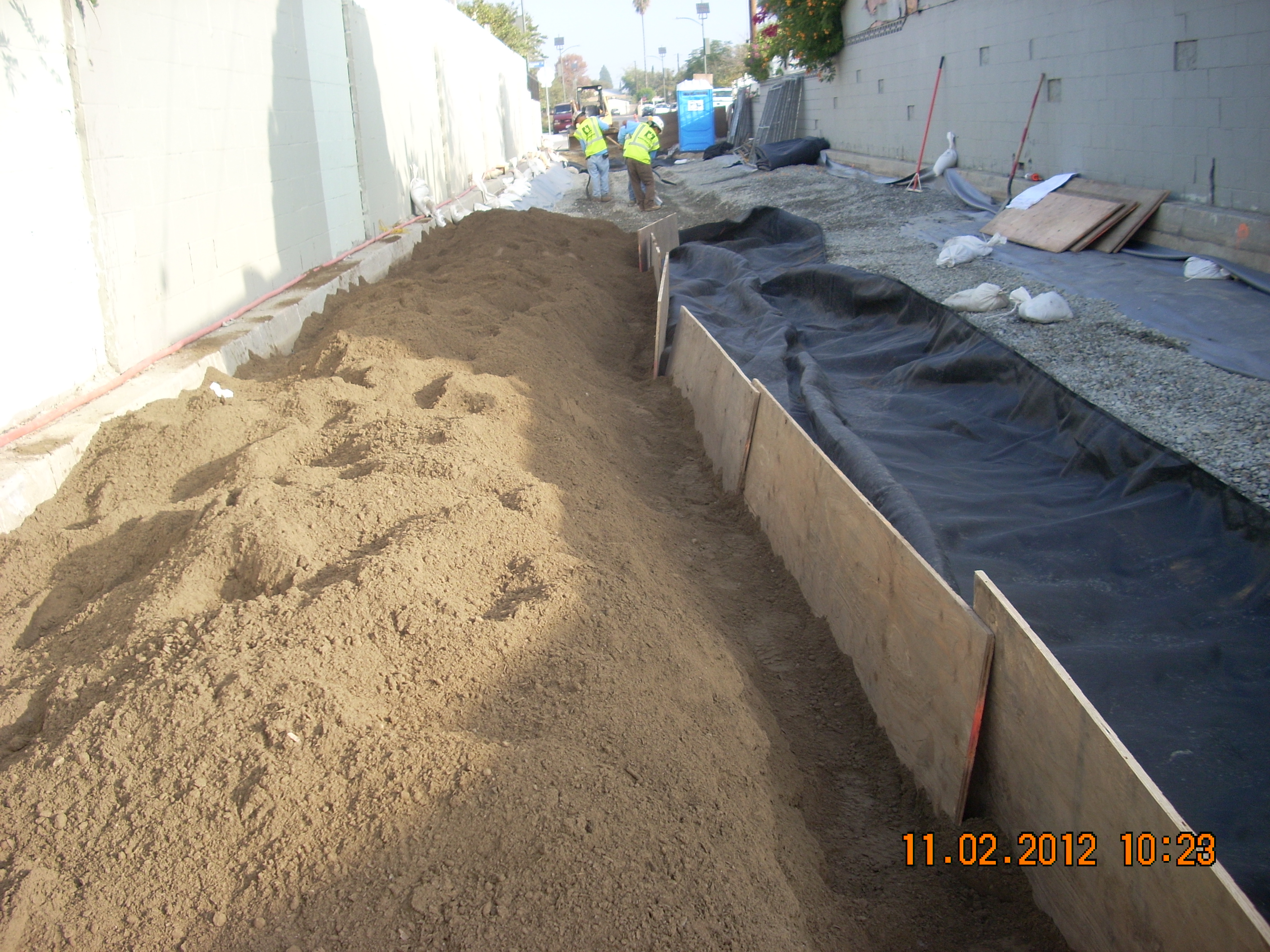

The challenge when backfilling the trench with gravel and the swale with soil is to maintain the vertical edge of the geotextile. To achieve the vertical profile of the geotextile, the crew placed plywood on edge to create a vertical guide. On one side of the plywood, a course of bio-retention soil was placed, then the geotextile that lay in place on the trench was “flipped over” the plywood guide to ‘cover’ the bio-soil layer and a course of gravel was spread out, then the geotextile was ‘flipped over’ the course of gravel and a layer of bio-soil spread out.

This sequence continued until the heights of the bio-soil and the gravel met the desired elevation points. The crew started in the center of the Paseo and worked out toward either ends of the Paseo. Kudos to the Paseo’s Field Superintendent Jose Esquivel, American Landscape, who masterfully choreographed the complicated logistics required for the delivery of gravel and soil and the work of spreading the materials.

To be continued next week.

How to create a clean water alley, Part I

Posted on by nancysteele

The Elmer Paseo is all but complete – we still have some finishing touches to add so it won’t be officially open until the new year. For all of you stormwater geeks, following is a photo essay showing how to create a clean water alley.

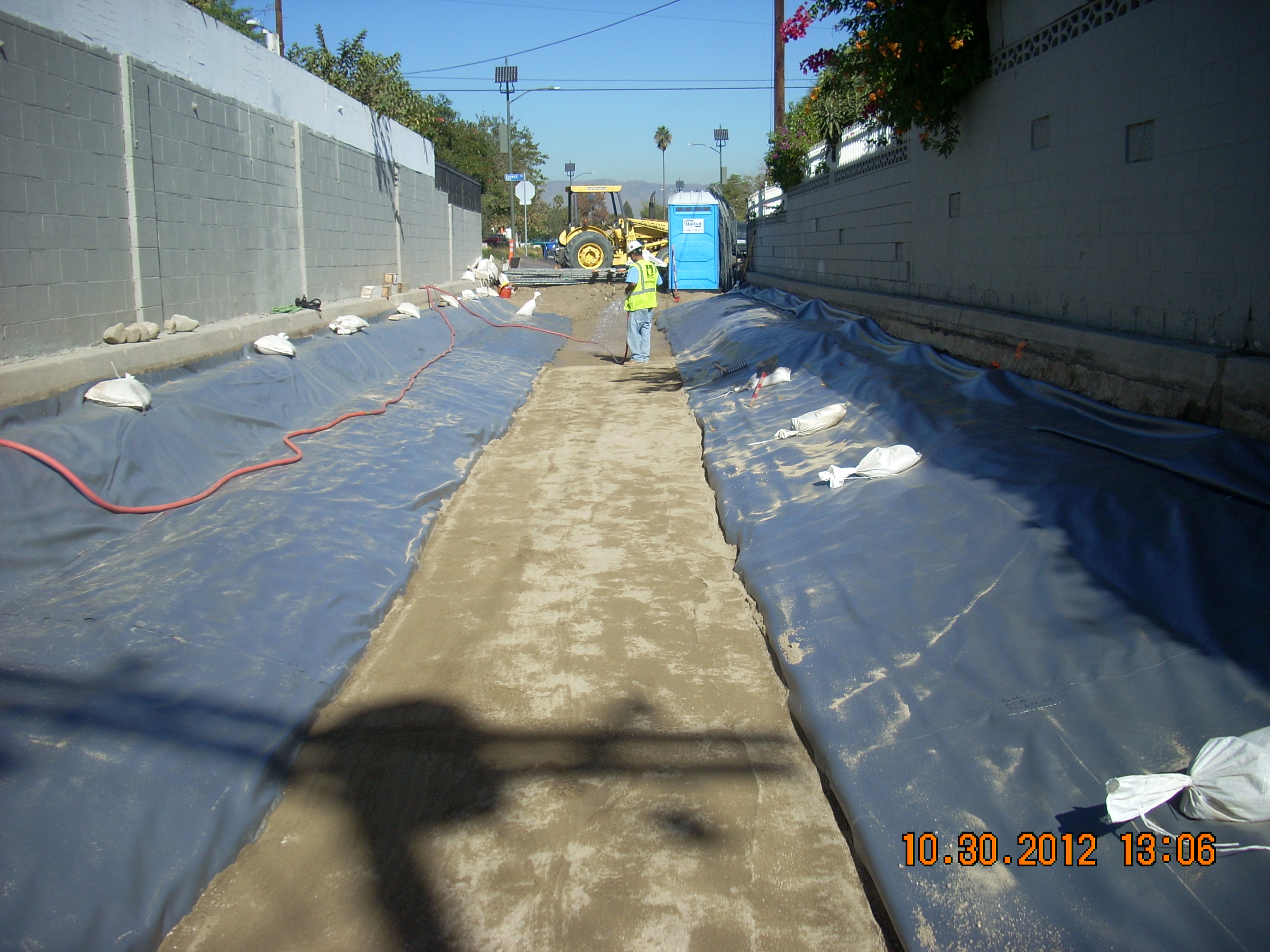

The Infiltration Trench and the Bio-swale. These two main features needed to be constructed simultaneously and included some challenging logistics. Down the center of the Paseo, the construction crew excavated a 4 foot deep trench which exposed the sandy native soil that is ideal for infiltrating water. Next they had to apply a layer of clean sand to help maintain consistent infiltration the entire length of the trench.

To protect the adjacent properties from water migrating toward their properties, workers installed an impervious liner along both sides of the existing wall, creating a funnel of sorts to direct water toward the open bottom trench.

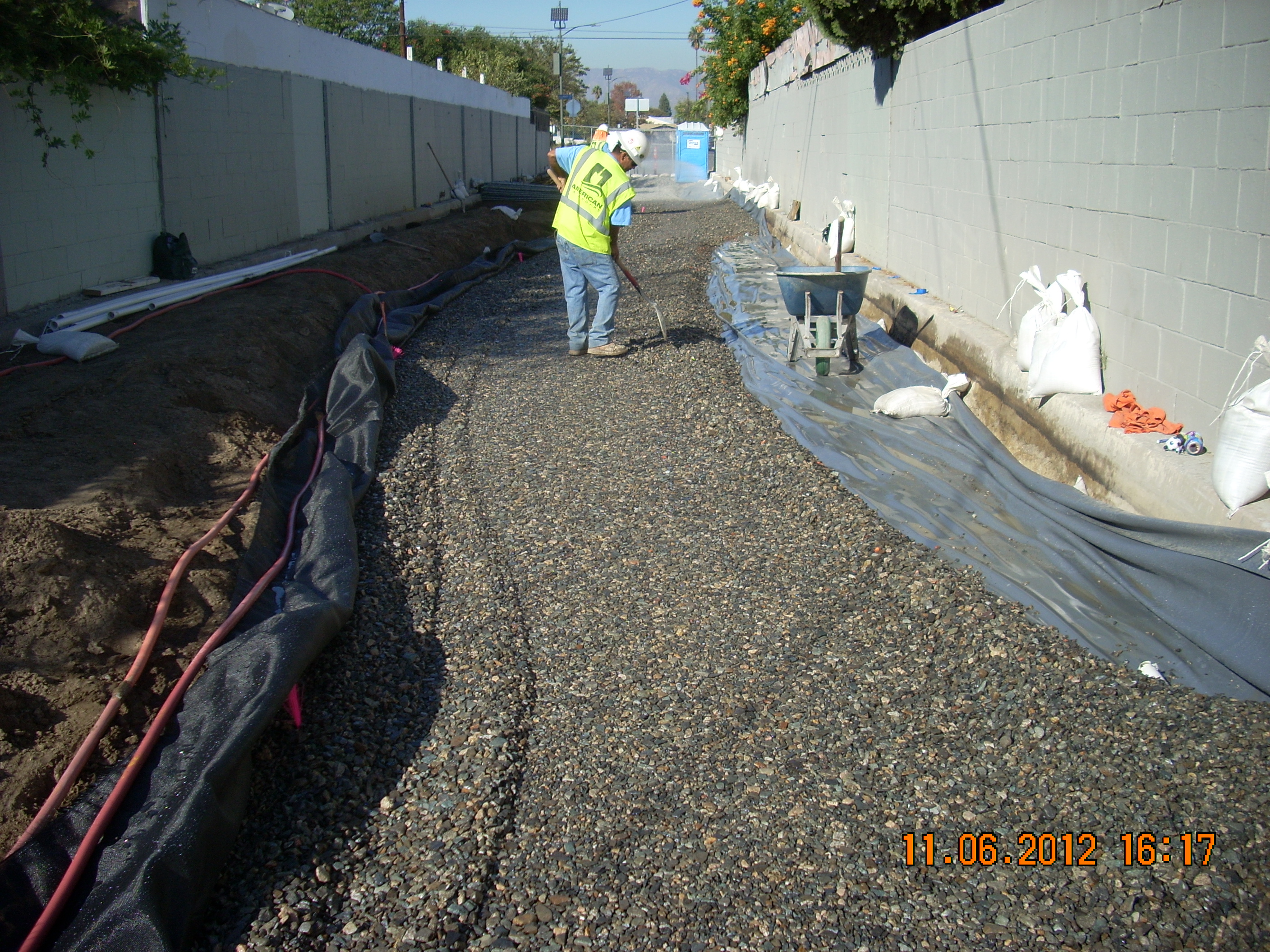

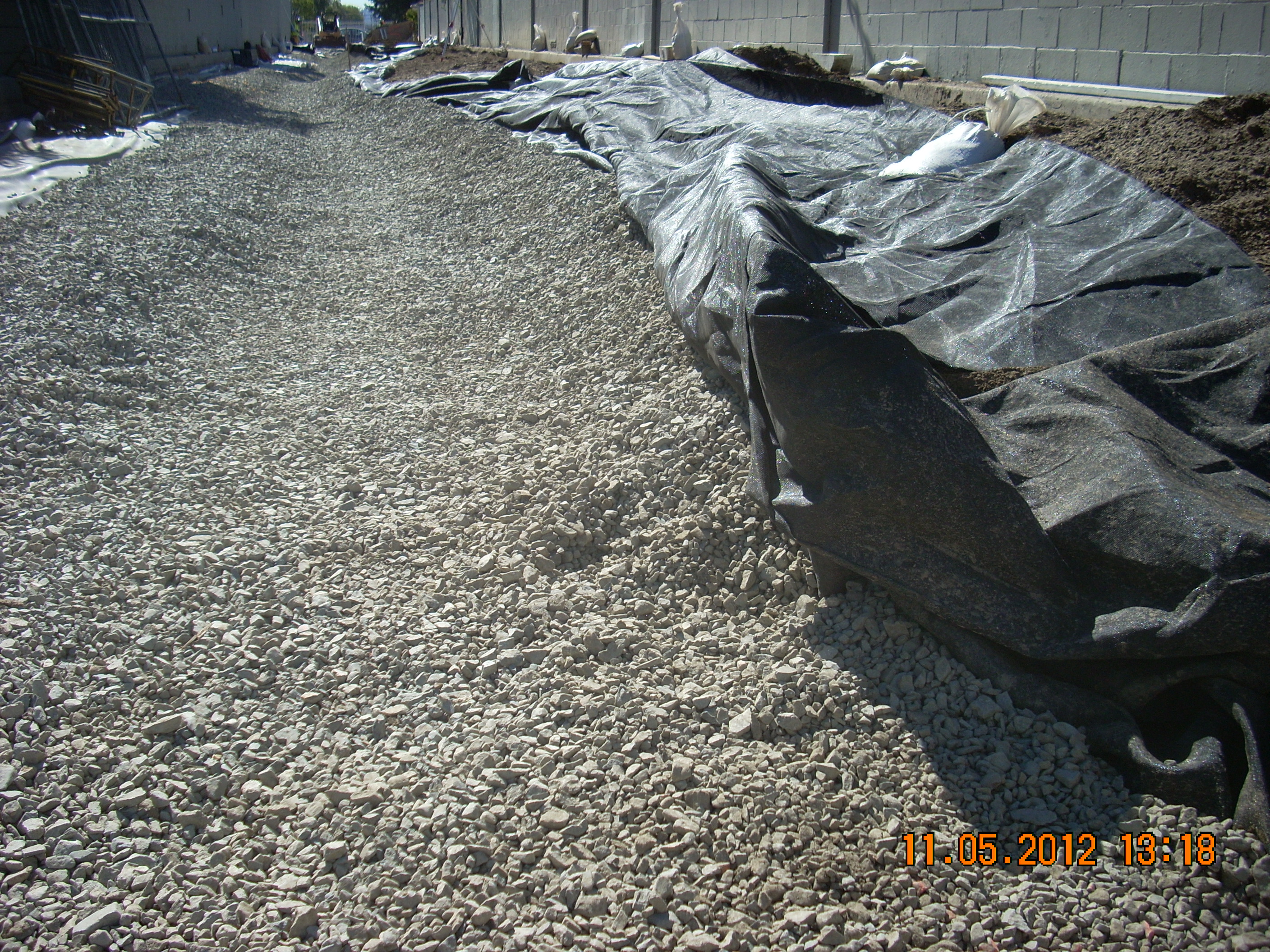

Next, workers backfilled the 4’ deep trench  with rough angular gravel, which creates voids or gaps between the rocks which allow water to collect and flow through the gravel to the bottom of the trench where it will infiltrate to the native soil. Smooth rocks will ‘lock’ together, preventing the formation of voids and gaps for water to collect.

To be continued

What’s next for green streets? How about green alleys!

Posted on by nancysteele

Imagine living next to a blighted alleyway. You’d like to use it to walk to church or school or the bus stop, but it’s unsafe and ugly. This is the situation that used to exist in the Elmer Avenue neighborhood. Step one was just cleaning up the Paseo so people could use it again – getting the abandoned cars towed, adding a light, and painting over the graffiti. Thankfully, the City of Los Angeles took the first step in making the Elmer Paseo a safer walkway back in 2009.

But, the Paseo still flooded, making it unusable and unsafe many days of the year. This year, the Council for Watershed Health took the next step.

In October, out came the asphalt paving and in went the construction crew to begin excavation for a new Paseo that will capture between 1.3 to 1.9 million gallons water annually, provide a safe and comfortable pedestrian connection to local goods and services, reduce localized temperatures, attract birds and butterflies, and raise community awareness about their local watershed.

Stay tuned for regular construction updates!
